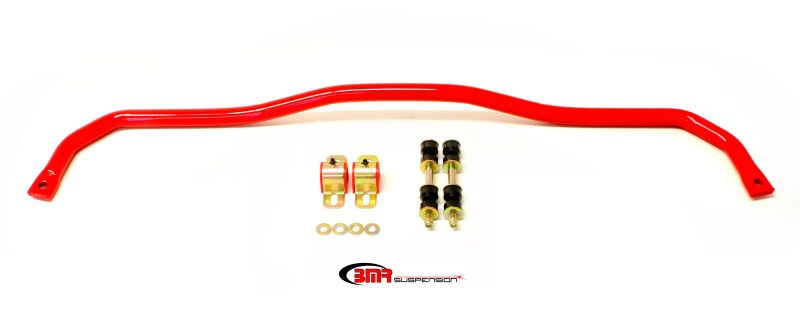

BMR 67-69 1st Gen F-Body Front Hollow 1.25in Sway Bar Kit w/ Bushings - Red

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension?s SB004 front sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 1.25-inch DOM tubing, the SB004 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB004 attaches to your Nova with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The fabricated laser cut, TIG-welded steel sway bar end links are reinforced to minimize deflection.
Application Guide


This Part Fits:

Year	Make	Model	Submodel
1967-1969	Chevrolet	Camaro	Base
1967-1969	Chevrolet	Camaro	RS
1967-1969	Chevrolet	Camaro	SS
1967-1969	Chevrolet	Camaro	Z28
1969-1974	Chevrolet	Nova	Base
1973-1974	Chevrolet	Nova	Custom
1968-1969	Pontiac	Firebird	350
1969	Pontiac	Firebird	350 HO
1967-1969	Pontiac	Firebird	400
1967-1969	Pontiac	Firebird	Base
1967	Pontiac	Firebird	HO
1967-1969	Pontiac	Firebird	Sprint
1969	Pontiac	Firebird	Trans Am
